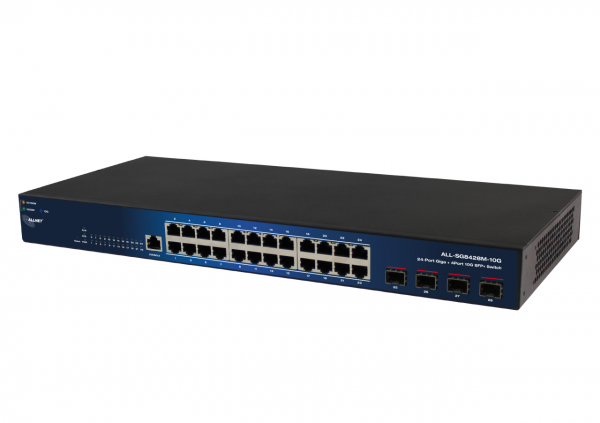

ALLNET Switch smart managed 24 Port Gigabit / 24x LAN / 4x SFP+ / Lüfterlos / 19" / "ALL-SG8428M-10G"

Vorschau: ALLNET Switch smart managed 24 Port Gigabit / 24x LAN / 4x SFP+ / Lüfterlos / 19" / "ALL-SG8428M-10G"

Artikelbilder ähnlich, können von der Produkt-Beschreibung abweichen!

Preise zzgl. gesetzlicher MwSt.
zzgl. Versandkosten

Sofort versandfertig, Lieferzeit ca. 1-3 Werktage

Downloads

EU RoHS und REACH Erklärung

Bestand: 0
Artikel-Nr.: 219585
Hersteller: ALLNET
Hersteller Artikel-Nr.: ALL-SG8428M-10G
EAN Nummer: 4038816129475
Gewicht: 2.9kg
Garantie: 24 Monate
Fragen zum Artikel?

ALLNET ALL-SG8428M-10G – Smart Managed Switch für maximale Performance Highlights: 24x... mehr

Menü schließen

Produktinformationen "ALLNET Switch smart managed 24 Port Gigabit / 24x LAN / 4x SFP+ / Lüfterlos / 19" / "ALL-SG8428M-10G""

ALLNET ALL-SG8428M-10G – Smart Managed Switch für maximale Performance

Highlights:

24x 10/100/1000 Mbps RJ45-Ports
4x 1G/10G SFP+ Slots für High-Speed-Uplinks
Layer-2 Management-Funktionen für effiziente Netzwerkkontrolle
Energieeffizientes, lüfterloses Design
Desktop- und Rackmount-fähig (inkl. Montagezubehör)
Robustes Metallgehäuse für langlebigen Einsatz

Produktbeschreibung

Erleben Sie höchste Netzwerkperformance mit dem ALLNET ALL-SG8428M-10G! Dieser kosteneffiziente 24-Port Gigabit Layer-2 Switch mit 4 zusätzlichen SFP+ Slots bietet eine leistungsstarke, lüfterlose Lösung für anspruchsvolle Business- und Industrieumgebungen. Ideal geeignet für den Einsatz auf dem Desktop oder zur nahtlosen Integration in 19"-Rack-Systeme.

Ihre Vorteile auf einen Blick

Maximale Flexibilität: 24 Gigabit-Ports + 4 SFP+ MiniGBIC Slots für Glasfaseranbindungen.
Lüfterloses Design: Flüsterleiser Betrieb – perfekt für geräuschempfindliche Arbeitsumgebungen.
Non-blocking Architektur: Für verzögerungsfreie Datenübertragung und höchste Netzwerkgeschwindigkeit.
Einfache Installation: Unterstützung des NWay-Protokolls zur automatischen Anpassung von Geschwindigkeit und Duplex-Modus.
Rackmount-fähig: Ideal für professionelle Server- und Technikräume.

Anwendungsbereiche

Unternehmen mit hohen Anforderungen an Bandbreite und Zuverlässigkeit
Geräuscharme Büroumgebungen
Professionelle Rechenzentren und Netzwerkinfrastrukturen
Industrieanwendungen dank robuster Bauweise

Technische Daten:

Hardware Specs

Items	Specifications
Model No.	ALL-SG8428M-10G
Key Components	RTL9301M+RTL8218Dx3 Flash IC: MXIC 16M Byte DDR: 1G bits
I/O ports	24x GbE ports, RJ45 4 x 10G ports, SFP+ Reset Button: reset to default setting, re-start system Console port by RJ45 type
LED Define	PWR: Green LED Off: power off or fail On: power on SYS: Green LED Off: power off or fail On: system is ready Blinking: system booting up Alert: Red LED Off: Switch is normal condition On: Alarm for system failure because of overheat, wrong voltage. 1-24 Port LED: Link/ACT: Off: port disconnected or link fail Green on: 1000Mbps connected Amber on: 10/100Mbps connected Blinking: sending or receiving data 25-28 port LED: SFP+: - Off: disconnected or fail - Blue: 10Gbps connected - Green: 1000Mbps connected - Blinking: data transmitting
HW feature	IEEE802.3 10BASE-T IEEE802.3u 100BASE-TX IEEE802.3ab 1000BASE-T IEEE802.3ae SFP+ IEEE802.3az EEE MAC address Table: 16K Packet buffer size: 12Mbit Jumbo Frame: 12K bytes 128Gbps switching capacity Forwarding rate: 95.2Mpps (64-byte package size)

Data Transfer Rate	Ethernet:10 Mbps(half duplex),20 Mbps(full duplex) Fast Ethernet:100 Mbps(half duplex),200 Mbps(full duplex) Giga Ethernet:2000 Mbps(full duplex) 10 Gigabit Ethernet:20 Gbps(full duplex)
System Monitor	HW Monitor IC: ADT7463 Voltage Monitor Input Voltage : 12V (+/-7% Alarm Threshold) I/O Voltage : 3.3V (+/- 5% Alarm Threshold) DDR Voltage : 1.5V (+/- 5% Alarm Threshold) PHY Voltage : 1.1V (+/- 5% Alarm Threshold) MAC Voltage:1.0V (+/- 5% Alarm Threshold) Temperature Monitor BOARD: 0~80°C MAC: 0~85°C PHY: 0~85°C
Power Input	Internal power supply Input: 90~264VAC/47~63Hz Output: 12V/3A
Reset button	Support reset to default configuration
Dimension	441(W) x 196(D) x 44(H) mm
FAN Design	Fan-less
Temperature	Operating: 0 ~ 40°C Storage : -40 ~ 70°C
Humidity	Operating: 10% ~ 90% RH (non-condensing) Storage : 5% ~ 90% RH (non-condensing)

Software Specs

Status	System Information
	Logging Message
	Port	Statistics
		Error Disabled
		Bandwidth Utilization
	Link Aggregation
	MAC Address Table	8K
Network	IP Address	Static / Dynamic
Network	System Time	SNTP / From Computer / Manual Time
Port	Port Setting	State / Speed / Duplex / Flow Control
	Error Disabled	Recovery Interval	ACL / ARP Rate Limit / BPDU Guard / Broadcast Flood / DHCP Rate Limit / Port Security / Self Loop / Unicast Flood / Unknown Multicast Flood
	Link Aggregation	Group
		Port Setting	State / Speed / Flow Control
		LACP
	EEE
	Jumbo Frame	1518 – 10000 Byte
PoE	Global Setting	Schedule Status
	Priority Setting
	Power Limit
	Power Show
VLAN	VLAN	Create VLAN
		VLAN Configuration
		Membership
		Port Setting
	Voice VLAN	Property
	Voice VLAN	Voice OUI
	Protocol VLAN	Protocol Group
	Protocol VLAN	Group Binding
	MAC VLAN	MAC Group
	MAC VLAN	Gr-oup Binding
	Surveillance VLAN	Property
	Surveillance VLAN	Surveillance OUI
	GVRP	Property
		Membership
		Statistics
MAC Address Table	Dynamic Address	Aging Time
	Static Address
	Filtering Address
Spanning Tree	Property	State / Operation Mode / Path Cost / BPDU Handling	Operation Mode : STP/RSTP/MSTP
	Port Setting
	MST Instance
	MST Port Setting
	Statistics
Discovery	LLDP	Property
		Port Setting
		MED Network Policy
		MED Port Setting
		Packet View
		Local Information
		Neighbor
		Statistics
Multicast	General	Property	Unknown Multicast Action / Multicast Forward Method
		Group Address
		Router Port
		Forward All Table
		Throttling
		Filtering Profile
		Filtering Binding
	IGMP Snooping	Property	State / Version / Report Suppression
		Querier
		Statistics
	MLD Snooping	Property	State / Version / Report Suppression
	MLD Snooping	Statistics
	MVR	Property	State / VLAN / Mode / Group Start / Group Count / Query Time
		Port Setting
		Group Address
Security	RADIUS
	TACACS+
	AAA	Method List
	AAA	Login Authentication	Console / Telnet / SSH / HTTP / HTTPS
	Management Access	Management VLAN
		Management Service	Telnet / SSH / HTTP / HTTPS / SNMP / Session Timeout
		Management ACL
		Management ACE
	Authentication Manager	Property
		Port Setting
		Sessions
	Port Security
	Protected Port
	Storm Control		State / Broadcast / Unknown Multicast / Unknown Unicast / Action (Drop / Shutdown)
	DoS	Property
	DoS	Port Setting
	Dynamic ARP Inspection	Property
	Dynamic ARP Inspection	Statistics
	DHCP Snooping	Property
		Statistics
		Option82 Property
		Option82 Circuit ID
	IP Source Guard	Port Setting
		IMPV Binding
		Save Database
ACL	MAC ACL
	MAC ACE
	IPv4 ACL
	IPv4 ACE
	IPv6 ACL
	IPv6 ACE
	ACL Binding
QoS	General	Property	CoS / DSCP / CoS-DSCP / IP Precedence
		Queue Scheduling	Strict Priority / WRR
		CoS Mapping
		DSCP Mapping
		IP Precedence Mapping
	Rate Limit	Ingress / Egress Port
	Rate Limit	Egress Queue
Diagnostics	Logging	Property	Console / RAM / Flash
	Logging	Remote Server
	Mirroring
	Ping
	Traceroute
	Copper Test
	Fiber Module
	UDLD	Property	Message Time
	UDLD	Neighbor
Management	User Account
	Firmware	Upgrade / Backup	Action (Upgrade / Backup) / Method (TFTP / HTTP)
	Firmware	Active Image	Active Image / Backup Image
	Configuration	Upgrade / Backup	Action (Upgrade / Backup) / Method (TFTP / HTTP)
	Configuration	Save Configuration	Source File / Destination File, Restore Factory Default
	SNMP	View
		Group
		Community
		User
		Engine ID
		Trap Event	Authentication Failure / Link UP_Down / Cold Start / Warm Start
		Notification
RMON	Statistics
	History
	Event
	Alarm

Produktmerkmale:

Anzahl Ports PoE/LAN:	0/24
Belüftung Switch:	Lüfterlos
Einsatzort Switch:	19"
LAN Geschwindigkeit:	1Gbit/S
Management:	smart managed (WebGui)
SFP Geschwindigkeit:	SFP+ 10GBit
SFP Port Anzahl:	4
